BAY NANO Electrochromic Glass for Smart Buildings Adjusting Daylight Transmission

  • Detail
  • Parameters
  • 公司简介
Product Paramenters

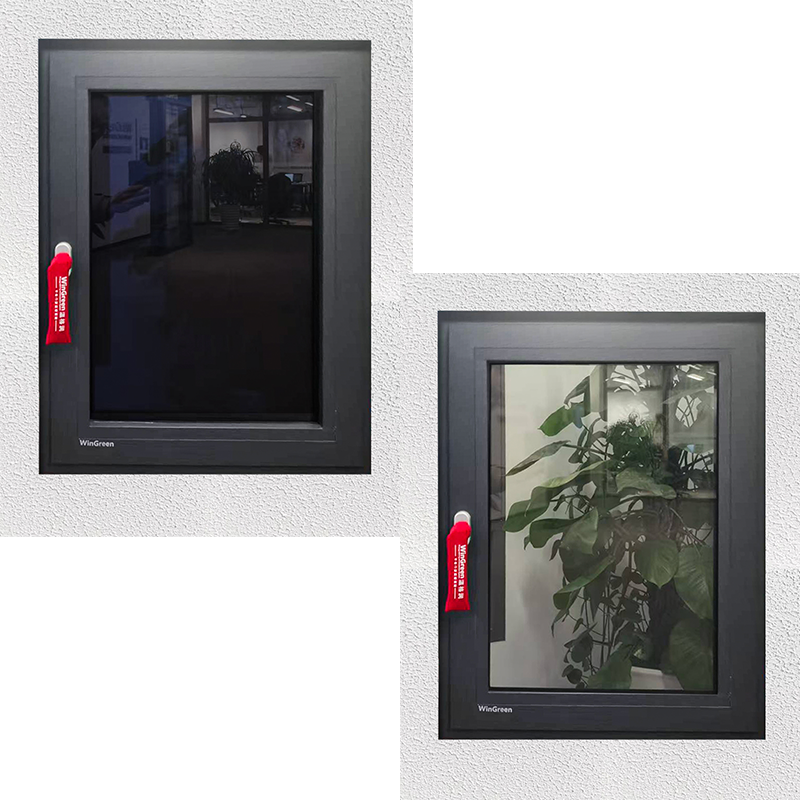

Features: Enables smart control of light and heat, privacy shading, and one-way visibility.

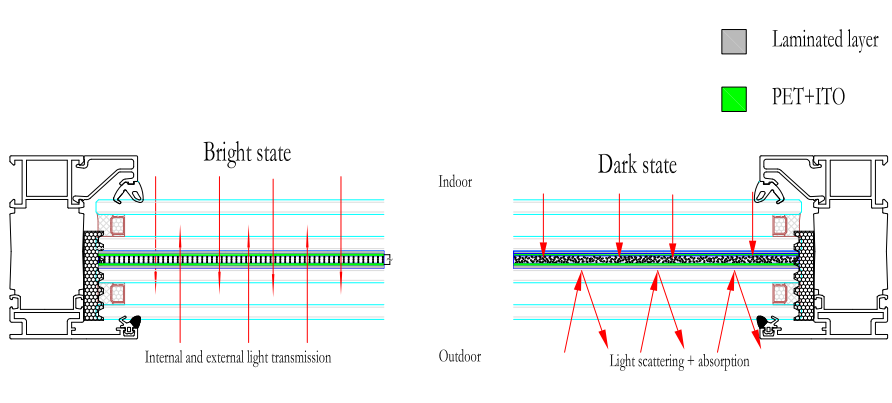

Working Principles

The intelligent dynamic dimming film is a kind of intelligent dynamic dimming film product that is made by mixing polarized crystal particles and polymer. It utilizes the change in the polarization orientation of the polarized crystal particles under the action of an electric field, which leads to the change in light transmittance, thus achieving stepless regulation and control of the light transmittance.
Technical Parameters

Intelligent dynamic dimming film
ITEM
MODE
PARAMETERS
VLT(Visible Light Transmittance)
ON
≥60%
OFF
1%
Haze
ON
≤5%
OFF
30-50%
Operating Voltage
ON
110V
Response time
OFF—ON
≤2s
ON—OFF
≤5s
Operating Temperature
/
-30℃—90℃
energy consumption
-30℃-90℃
≤1.5w/㎡
Number of Switching Cycles
/
＞1000000times
Ultraviolet Blocking Rate
ON
99%
OFF
99.9%

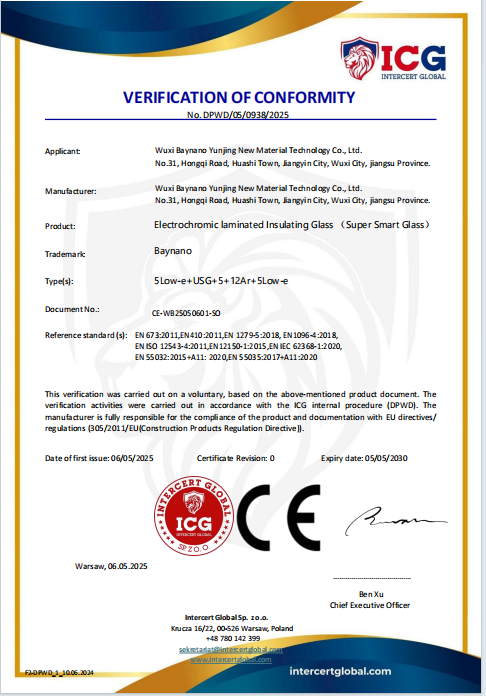

Certifications
Application Scenarios

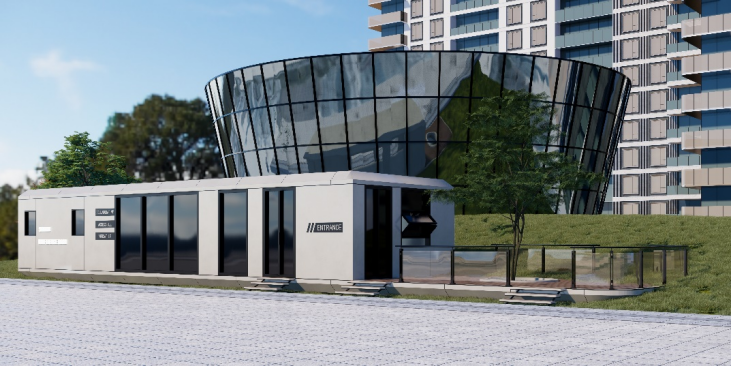

It is mainly used in high-end building facades, doors and windows, curtain walls, as well as skylight roofs, sunrooms, and other structures requiring daylighting and sun shading.
Smart Travel
Automobiles /High-speed Railways / Airplanes, etc.
Smart Wearables
Technology /Life

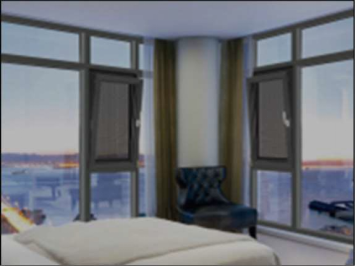

Smart Building
Energy Conservation / Architecture

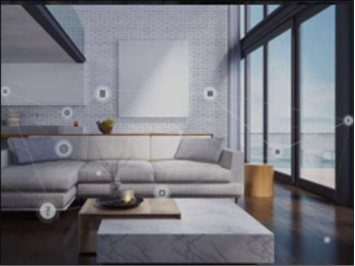

Smart Life
Home Appliances / Home Furnishings

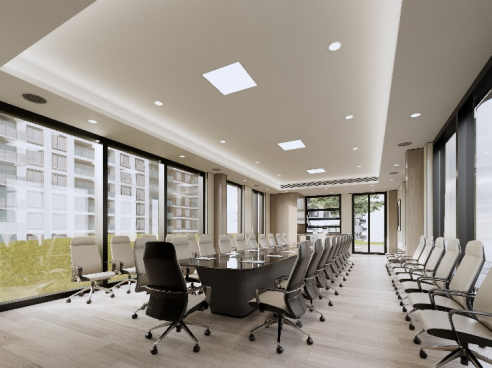

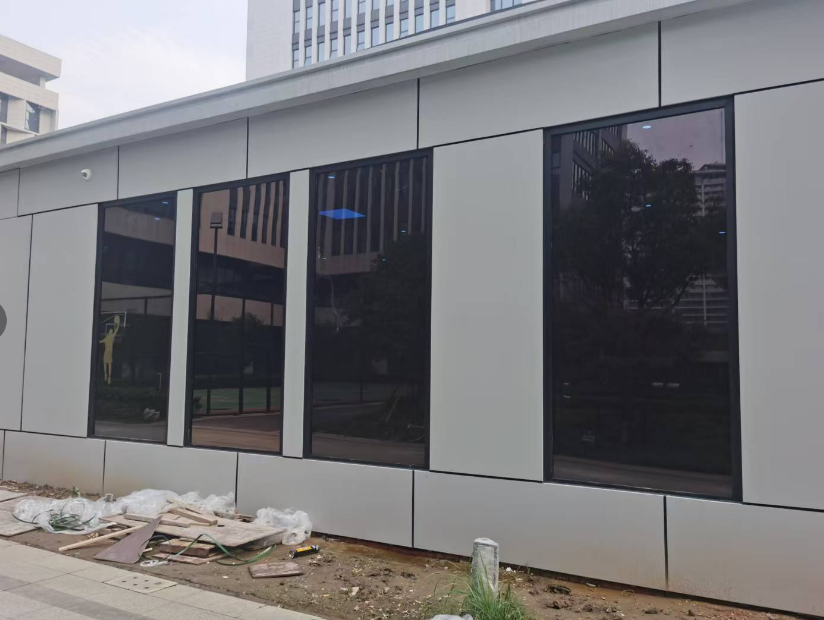

Project Cases
